- Широкий ассортимент насосов для сточных вод из нержавеющей стали.
- Улучшенные гидравлические характеристики.
- Материальное исполнение из нержавеющей стали AISI 304 или AISI 316.
- Надежная и долговечная конструкция.
- Высокоэффективный двигатель ІЕ3 с классом защиты IP68 F.
- Незасоряемое рабочее колесо.
Применяется для откачивания агрессивных сред, сточных, канализационных, грунтовых и поверхностных вод, содержащих твердые частицы и длинноволокнистые вещества. Используется в медицинских учреждениях, жилых кварталах, в коммунальном хозяйстве, строительстве, пищевой и тяжелой промышленности, аквакультуре, фармацевтике.
Эксплуатационные ограничения
- Температура жидкости до +40°С.
| Модель | DN | Подача | Напор | Мощность | об/мин |
| мм | м³/ч | м | кВт | ||
| 50WQ10-10-0.75/2 | 50 | 10 | 10 | 0.75 | 2900 |
| 50WQ7-15-1.1/2 | 50 | 7 | 15 | 1.1 | 2900 |
| 25WQ5-22-1.1/2 | 25 | 5 | 22 | 1.1 | 2900 |
| 32WQ6-20-1.1/2 | 32 | 6 | 20 | 1.1 | 2900 |
| 40WQ7-18-1.1/2 | 40 | 7 | 18 | 1.1 | 2900 |
| 50WQ10-12-1.1/2 | 50 | 10 | 12 | 1.1 | 2900 |
| 65WQ15-9-1.1/2 | 65 | 15 | 9 | 1.1 | 2900 |
| 40WQ8-18-1.5/2 | 40 | 8 | 18 | 1.5 | 2900 |
| 50WQ10-16-1.5/2 | 50 | 10 | 16 | 1.5 | 2900 |
| 50WQ15-15-1.5/2 | 50 | 15 | 15 | 1.5 | 2900 |
| 65WQ20-10-1.5/2 | 65 | 20 | 10 | 1.5 | 2900 |
| 80WQ40-7-1.5/2 | 80 | 40 | 7 | 1.5 | 2900 |
| 100WQ50-5-1.5/2 | 100 | 50 | 5 | 1.5 | 2900 |
| 40WQ8-24-2.2/2 | 40 | 8 | 24 | 2.2 | 2900 |
| 50WQ9-22-2.2/2 | 50 | 9 | 22 | 2.2 | 2900 |
| 50WQ15-20-2.2/2 | 50 | 15 | 20 | 2.2 | 2900 |
| 65WQ20-15-2.2/2 | 65 | 20 | 15 | 2.2 | 2900 |
| 80WQ40-10-2.2/2 | 80 | 40 | 10 | 2.2 | 2900 |
| 100WQ50-7-2.2/2 | 100 | 50 | 7 | 2.2 | 2900 |
| 50WQ15-25-3/2 | 50 | 15 | 25 | 3 | 2900 |
| 65WQ25-18-3/2 | 65 | 25 | 18 | 3 | 2900 |
| 65WQ37-13-3/2 | 65 | 37 | 13 | 3 | 2900 |
| 80WQ45-12-3/2 | 80 | 45 | 12 | 3 | 2900 |
| 80WQ43-13-3/2 | 80 | 43 | 13 | 3 | 2900 |
| 100WQ60-9-3/2 | 100 | 60 | 9 | 3 | 2900 |
| 50WQ15-30-4/2 | 50 | 15 | 30 | 4 | 2900 |
| 65WQ25-25-4/2 | 65 | 25 | 25 | 4 | 2900 |
| 80WQ40-16-4/2 | 80 | 40 | 16 | 4 | 2900 |
| 100WQ60-12-4/2 | 100 | 60 | 12 | 4 | 2900 |
| 100WQ80-10-4/2 | 100 | 80 | 10 | 4 | 2900 |
| 50WQ20-35-5.5/2 | 50 | 20 | 35 | 5.5 | 2900 |
| 65WQ25-30-5.5/2 | 65 | 25 | 30 | 5.5 | 2900 |
| 80WQ40-22-5.5/2 | 80 | 40 | 22 | 5.5 | 2900 |
| 100WQ60-18-5.5/2 | 100 | 60 | 18 | 5.5 | 2900 |
| 150WQ120-8-5.5/2 | 150 | 120 | 8 | 5.5 | 2900 |
| 50WQ20-42-7.5/2 | 50 | 20 | 42 | 7.5 | 2900 |
| 65WQ25-36-7.5/2 | 65 | 25 | 36 | 7.5 | 2900 |
| 80WQ40-28-7.5/2 | 80 | 40 | 28 | 7.5 | 2900 |
| 100WQ65-22-7.5/2 | 100 | 65 | 22 | 7.5 | 2900 |
| 150WQ100-10-7.5/2 | 150 | 100 | 10 | 7.5 | 2900 |
| 50WQ20-55-11/2 | 50 | 20 | 55 | 11 | 2900 |
| 65WQ30-40-11/2 | 65 | 30 | 40 | 11 | 2900 |
| 80WQ60-30-11/2 | 80 | 60 | 30 | 11 | 2900 |
| Модель | DN | Подача | Напор | Мощность | об/мин |
| мм | м³/ч | м | кВт | ||
| 150WQ100-20-11/2 | 150 | 100 | 20 | 11 | 2900 |
| 150WQ120-15-11/2 | 150 | 120 | 15 | 11 | 2900 |

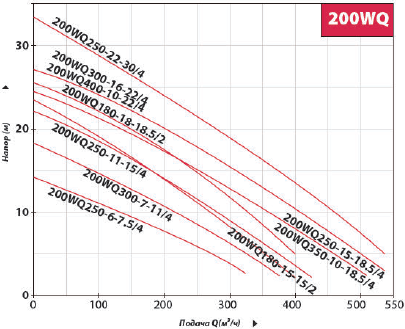

| 200WQ180-11-11/2 | 200 | 180 | 11 | 11 | 2900 |
| 50WQ20-70-15/2 | 50 | 20 | 70 | 15 | 2900 |
| 65WQ30-60-15/2 | 65 | 30 | 60 | 15 | 2900 |
| 80WQ60-40-15/2 | 80 | 60 | 40 | 15 | 2900 |

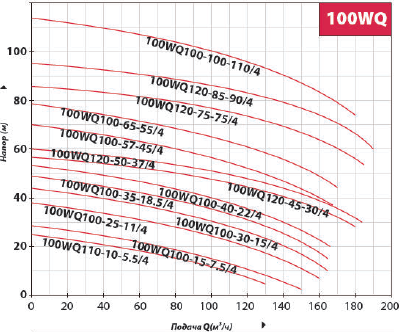

| 100WQ80-35-15/2 | 100 | 80 | 35 | 15 | 2900 |
| 150WQ100-30-15/2 | 150 | 100 | 30 | 15 | 2900 |
| 150WQ120-25-15/2 | 150 | 120 | 25 | 15 | 2900 |
| 200WQ180-15-15/2 | 200 | 180 | 15 | 15 | 2900 |
| 50WQ20-80-18.5/2 | 50 | 20 | 80 | 18.5 | 2900 |
| 65WQ30-68-18.5/2 | 65 | 30 | 68 | 18.5 | 2900 |
| 80WQ60-45-18.5/2 | 80 | 60 | 45 | 18.5 | 2900 |
| 100WQ80-40-18.5/2 | 100 | 80 | 40 | 18.5 | 2900 |
| 150WQ100-36-18.5/2 | 150 | 100 | 36 | 18.5 | 2900 |
| 200WQ180-18-18.5/2 | 200 | 180 | 18 | 18.5 | 2900 |
| 50WQ20-90-22/2 | 50 | 20 | 90 | 22 | 2900 |
| 65WQ30-75-22/2 | 65 | 30 | 75 | 22 | 2900 |
| 80WQ60-50-22/2 | 80 | 60 | 50 | 22 | 2900 |
| 100WQ80-45-22/2 | 100 | 80 | 45 | 22 | 2900 |
| 150WQ100-40-22/2 | 150 | 100 | 40 | 22 | 2900 |
| 200WQ200-20-22/2 | 200 | 200 | 20 | 22 | 2900 |
| 80WQ80-13-5.5/4 | 80 | 80 | 13 | 5.5 | 1450 |
| 100WQ110-10-5.5/4 | 100 | 110 | 10 | 5.5 | 1450 |
| 150WQ150-7-5.5/4 | 150 | 150 | 7 | 5.5 | 1450 |
| 80WQ80-20-7.5/4 | 80 | 80 | 20 | 7.5 | 1450 |
| 100WQ100-15-7.5/4 | 100 | 100 | 15 | 7.5 | 1450 |
| 150WQ145-9-7.5/4 | 150 | 145 | 9 | 7.5 | 1450 |
| 200WQ250-6-7.5/4 | 200 | 250 | 6 | 7.5 | 1450 |
| 100WQ100-25-11/4 | 100 | 100 | 25 | 11 | 1450 |
| 150WQ180-11-11/4 | 150 | 180 | 11 | 11 | 1450 |
| 200WQ300-7-11/4 | 200 | 300 | 7 | 11 | 1450 |
| 250WQ400-5-11/4 | 250 | 400 | 5 | 11 | 1450 |
| 100WQ100-30-15/4 | 100 | 100 | 30 | 15 | 1450 |
| 150WQ200-15-15/4 | 150 | 200 | 15 | 15 | 1450 |
| 200WQ250-11-15/4 | 200 | 250 | 11 | 15 | 1450 |
| 250WQ500-5-15/4 | 250 | 500 | 5 | 15 | 1450 |
| 100WQ100-35-18.5/4 | 100 | 100 | 35 | 18.5 | 1450 |
| 150WQ180-20-18.5/4 | 150 | 180 | 20 | 18.5 | 1450 |
| 200WQ250-15-18.5/4 | 200 | 250 | 15 | 18.5 | 1450 |
| 200WQ350-10-18.5/4 | 200 | 350 | 10 | 18.5 | 1450 |
| 250WQ500-7-18.5/4 | 250 | 500 | 7 | 18.5 | 1450 |
| Модель | DN | Подача | Напор | Мощность | об/мин |
| мм | м³/ч | м | кВт | ||
| 300WQ650-5-18.5/4 | 300 | 650 | 5 | 18.5 | 1450 |
| 100WQ100-40-22/4 | 100 | 100 | 40 | 22 | 1450 |
| 150WQ200-22-22/4 | 150 | 200 | 22 | 22 | 1450 |
| 200WQ300-16-22/4 | 200 | 300 | 16 | 22 | 1450 |
| 200WQ400-10-22/4 | 200 | 400 | 10 | 22 | 1450 |
| 250WQ500-9-22/4 | 250 | 500 | 9 | 22 | 1450 |
| 300WQ650-7-22/4 | 300 | 650 | 7 | 22 | 1450 |
| 100WQ120-45-30/4 | 100 | 120 | 45 | 30 | 1450 |
| 150WQ180-30-30/4 | 150 | 180 | 30 | 30 | 1450 |
| 200WQ250-22-30/4 | 200 | 250 | 22 | 30 | 1450 |
| 250WQ500-12-30/4 | 250 | 500 | 12 | 30 | 1450 |
| 250WQ600-9-30/4 | 250 | 600 | 9 | 30 | 1450 |
| 300WQ800-7-30/4 | 300 | 800 | 7 | 30 | 1450 |
| 300WQ1000-6-30/6 | 300 | 1000 | 6 | 30 | 980 |
| 350WQ1500-4-30/6 | 350 | 1500 | 4 | 30 | 980 |
| 100WQ120-50-37/4 | 100 | 120 | 50 | 37 | 1450 |
| 150WQ200-35-37/4 | 150 | 200 | 35 | 37 | 1450 |
| 200WQ300-28-37/4 | 200 | 300 | 28 | 37 | 1450 |
| 200WQ350-25-37/4 | 200 | 350 | 25 | 37 | 1450 |
| 250WQ600-12-37/4 | 250 | 600 | 12 | 37 | 1450 |
| 300WQ800-9-37/4 | 300 | 800 | 9 | 37 | 1450 |
| 350WQ1000-6-37/4 | 350 | 1000 | 6 | 37 | 1450 |
| 350WQ1100-6-37/6 | 350 | 1100 | 6 | 37 | 980 |
| 100WQ100-57-45/4 | 100 | 100 | 57 | 45 | 1450 |
| 150WQ200-40-45/4 | 150 | 200 | 40 | 45 | 1450 |
| 200WQ300-32-45/4 | 200 | 300 | 32 | 45 | 1450 |
| 200WQ400-25-45/4 | 200 | 400 | 25 | 45 | 1450 |
| 250WQ600-15-45/4 | 250 | 600 | 15 | 45 | 1450 |
| 300WQ800-12-45/4 | 300 | 800 | 12 | 45 | 1450 |
| 350WQ1200-8-45/4 | 350 | 1200 | 8 | 45 | 1450 |
| 350WQ1300-8-45/6 | 350 | 1300 | 8 | 45 | 980 |
| 100WQ100-65-55/4 | 100 | 100 | 65 | 55 | 1450 |
| 150WQ180-50-55/4 | 150 | 180 | 50 | 55 | 1450 |
| 200WQ300-40-55/4 | 200 | 300 | 40 | 55 | 1450 |
| 200WQ400-30-55/4 | 200 | 400 | 30 | 55 | 1450 |
| 250WQ600-20-55/4 | 250 | 600 | 20 | 55 | 1450 |
| 300WQ800-15-55/4 | 300 | 800 | 15 | 55 | 1450 |
| 350WQ1000-10-55/4 | 350 | 1000 | 10 | 55 | 1450 |
| 350WQ1100-10-55/6 | 350 | 1100 | 10 | 55 | 980 |
| 100WQ120-75-75/4 | 100 | 120 | 75 | 75 | 1450 |
| 150WQ200-60-75/4 | 150 | 200 | 60 | 75 | 1450 |
| 200WQ350-45-75/4 | 200 | 350 | 45 | 75 | 1450 |
| 250WQ600-25-75/4 | 250 | 600 | 25 | 75 | 1450 |
| Модель | DN | Подача | Напор | Мощность | об/мин |
| мм | м³/ч | м | кВт | ||
| 300WQ800-20-75/4 | 300 | 800 | 20 | 75 | 1450 |
| 350WQ1000-15-75/4 | 350 | 1000 | 15 | 75 | 1450 |
| 350WQ1500-12-75/6 | 350 | 1500 | 12 | 75 | 980 |
| 100WQ120-85-90/4 | 100 | 120 | 85 | 90 | 1450 |
| 150WQ200-70-90/4 | 150 | 200 | 70 | 90 | 1450 |
| 200WQ300-60-90/4 | 200 | 300 | 60 | 90 | 1450 |
| 200WQ400-50-90/4 | 200 | 400 | 50 | 90 | 1450 |
| 250WQ600-30-90/4 | 250 | 600 | 30 | 90 | 1450 |
| 300WQ800-25-90/4 | 300 | 800 | 25 | 90 | 1450 |
| 350WQ1000-18-90/4 | 350 | 1000 | 18 | 90 | 1450 |
| 350WQ1200-18-90/6 | 350 | 1200 | 18 | 90 | 980 |
| 100WQ100-100-110/4 | 100 | 100 | 100 | 110 | 1450 |
| 150WQ180-80-110/4 | 150 | 180 | 80 | 110 | 1450 |
| 200WQ300-65-110/4 | 200 | 300 | 65 | 110 | 1450 |
| 250WQ600-40-110/4 | 250 | 600 | 40 | 110 | 1450 |
| 300WQ1000-25-110/4 | 300 | 1000 | 25 | 110 | 1450 |
| 350WQ1300-20-110/4 | 350 | 1300 | 20 | 110 | 1450 |
| 350WQ1600-16-110/6 | 350 | 1600 | 16 | 110 | 980 |
| 150WQ200-90-132/4 | 150 | 200 | 90 | 132 | 1450 |
| 200WQ400-75-132/4 | 200 | 400 | 75 | 132 | 1450 |
| 250WQ600-50-132/4 | 250 | 600 | 50 | 132 | 1450 |
| 300WQ800-36-132/4 | 300 | 800 | 36 | 132 | 1450 |
| 350WQ1100-28-132/4 | 350 | 1100 | 28 | 132 | 1450 |
| 350WQ1500-20-132/6 | 350 | 1500 | 20 | 132 | 980 |
| 150WQ220-100-160/4 | 150 | 220 | 100 | 160 | 1450 |
| 200WQ400-85-160/4 | 200 | 400 | 85 | 160 | 1450 |
| 250WQ600-60-160/4 | 250 | 600 | 60 | 160 | 1450 |
| 300WQ800-40-160/4 | 300 | 800 | 40 | 160 | 1450 |
| 350WQ1000-35-160/4 | 350 | 1000 | 35 | 160 | 1450 |
| 350WQ1200-35-160/6 | 350 | 1200 | 35 | 160 | 980 |
| 150WQ200-110-185/4 | 150 | 200 | 110 | 185 | 1450 |
| 200WQ400-90-185/4 | 200 | 400 | 90 | 185 | 1450 |
| 250WQ600-70-185/4 | 250 | 600 | 70 | 185 | 1450 |
| 300WQ900-40-185/4 | 300 | 900 | 40 | 185 | 1450 |
| 350WQ1100-38-185/4 | 350 | 1100 | 38 | 185 | 1450 |
| 250WQ750-75-200/4 | 250 | 750 | 75 | 200 | 1450 |
| 300WQ1000-45-200/4 | 300 | 1000 | 45 | 200 | 1450 |
| 350WQ1300-35-200/4 | 350 | 1300 | 35 | 200 | 980 |
| 300WQ1100-45-250/4 | 300 | 1100 | 45 | 250 | 1450 |
| 350WQ1500-36-250/4 | 350 | 1500 | 36 | 250 | 1450 |
| 300WQ1000-55-315/4 | 300 | 1000 | 55 | 315 | 1450 |
| 350WQ1500-45-315/4 | 350 | 1500 | 45 | 315 | 1450 |
